Maintenance of telecom DC power supply

If the power supply system can not output the specified current, the voltage exceeds the allowable fluctuation range, the noise voltage is higher than the allowable value time and lasts more than 10s, the system is judged to be a system fault. When the voltage, frequency or waveform distortion in the original AC system is beyond the specified range, and the duration is longer than 60s, it will be judged to be a fault. Therefore, in order to ensure the reliability of the telecom outdoor DC power supply, the conditional telecom department should try to introduce 2 power input from two different places as far as possible, and set up the automatic switching device for the 2 way power input; the equipment should use high reliability switching equipment with high frequency, modular and hot plug type structure, so that it is easy to change, and configure backup equipment reasonably. No new technology or equipment shall be entered into the power supply system before being fully verified and tested. Should vigorously promote distributed power supply, more than two independent power supply systems shall be used for telecom equipment using the same DC voltage, this is the new requirements of future telecom network capacity and expedition. In order to minimize the average repair time of the equipment, it is necessary to analyze the operation parameters, predict the time of failure and remove it in time. We should also improve the level of technical maintenance, and adopt centralized maintenance, remote maintenance and telemetry maintenance.
The implementation of centralized monitoring management is the inevitable trend of network technology development. It is also the requirement of modern telecom network and effective measures for downsizing and increasing efficiency of enterprises. All kinds of power equipment should be intelligent, standardized and conform to the open telecom protocol.

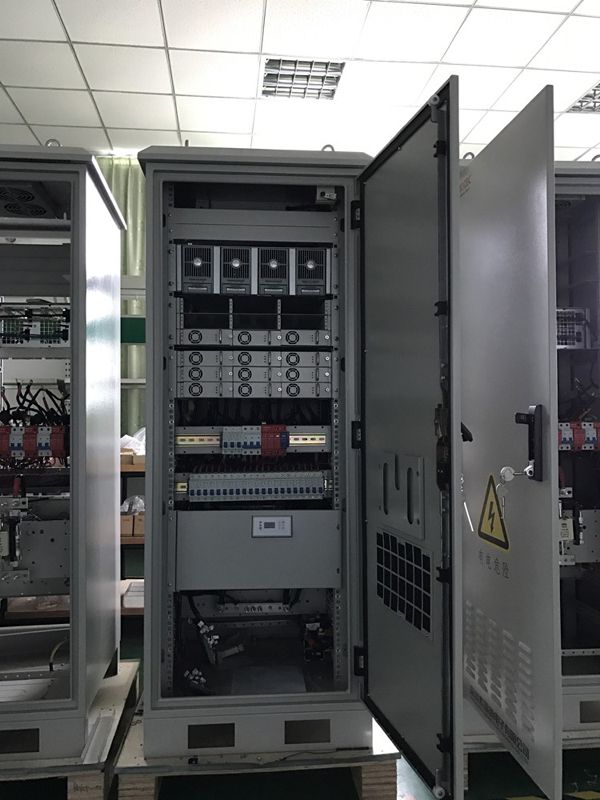

SOROTEC SHW48200 48VDC MPPT Off-Grid Telecom Station Solar Hybrid System

■Adopt advanced MCU microprocessor control technology.
■Advanced MPPT Technology,High converting efficiency higher than 97% for minimizing energy loss.
■Reversed current protection at night, over voltage and reverse polarity protection.
■Capable of selecting different charging mode for various types of batteries.
■Protection degree:IP55
■Industy-leading power density compact size and high reliability;
■Doorframe designed with waterproof structure, posted on the seal and equipped with waterproof lock on the door double insulation design;
■Cabine adopt quality galvanized sheet or aluminum coated steel sheet as material, surface coating anti-UV power;
■Suitable for outdoor installation.
